Abstract

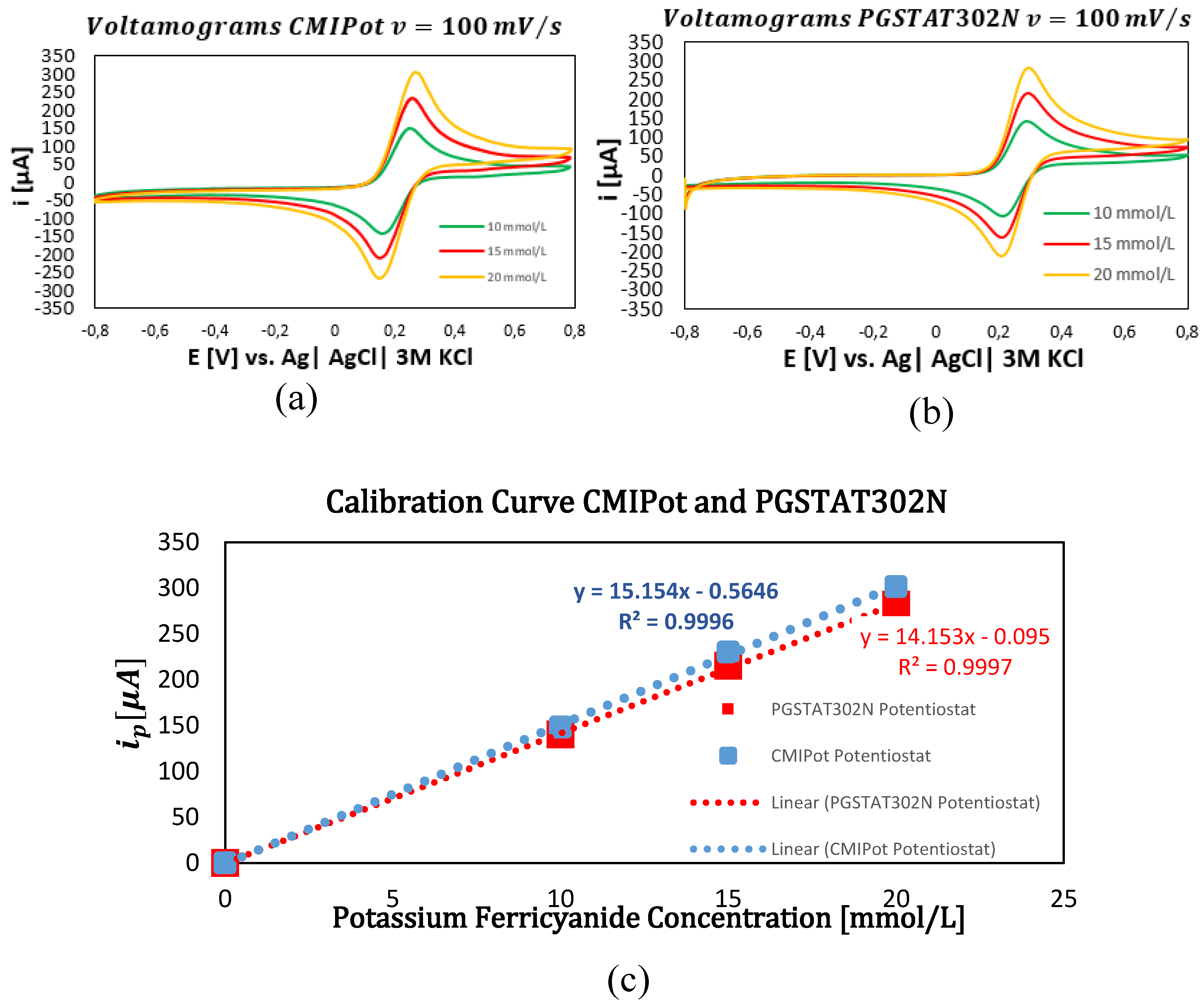

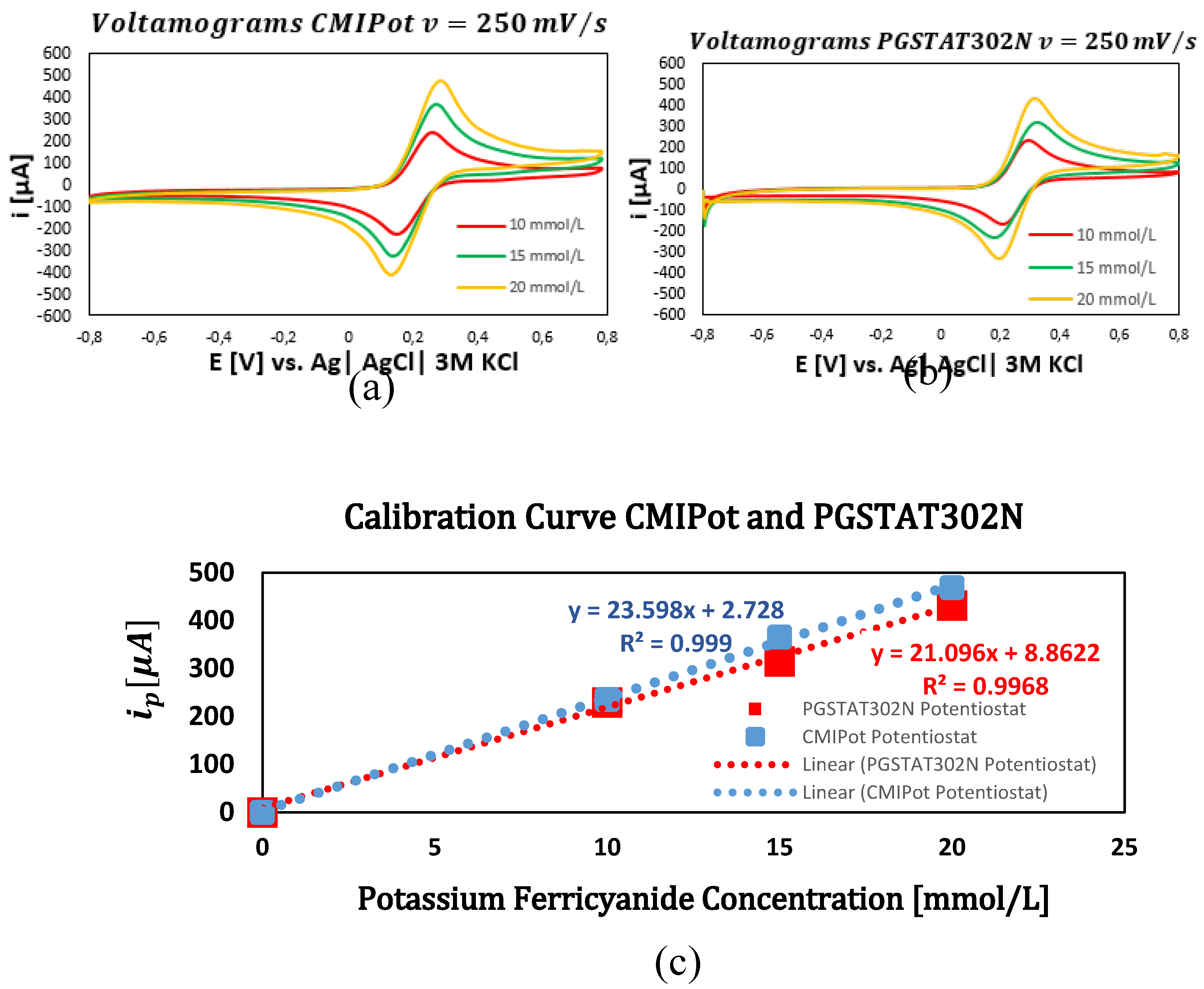

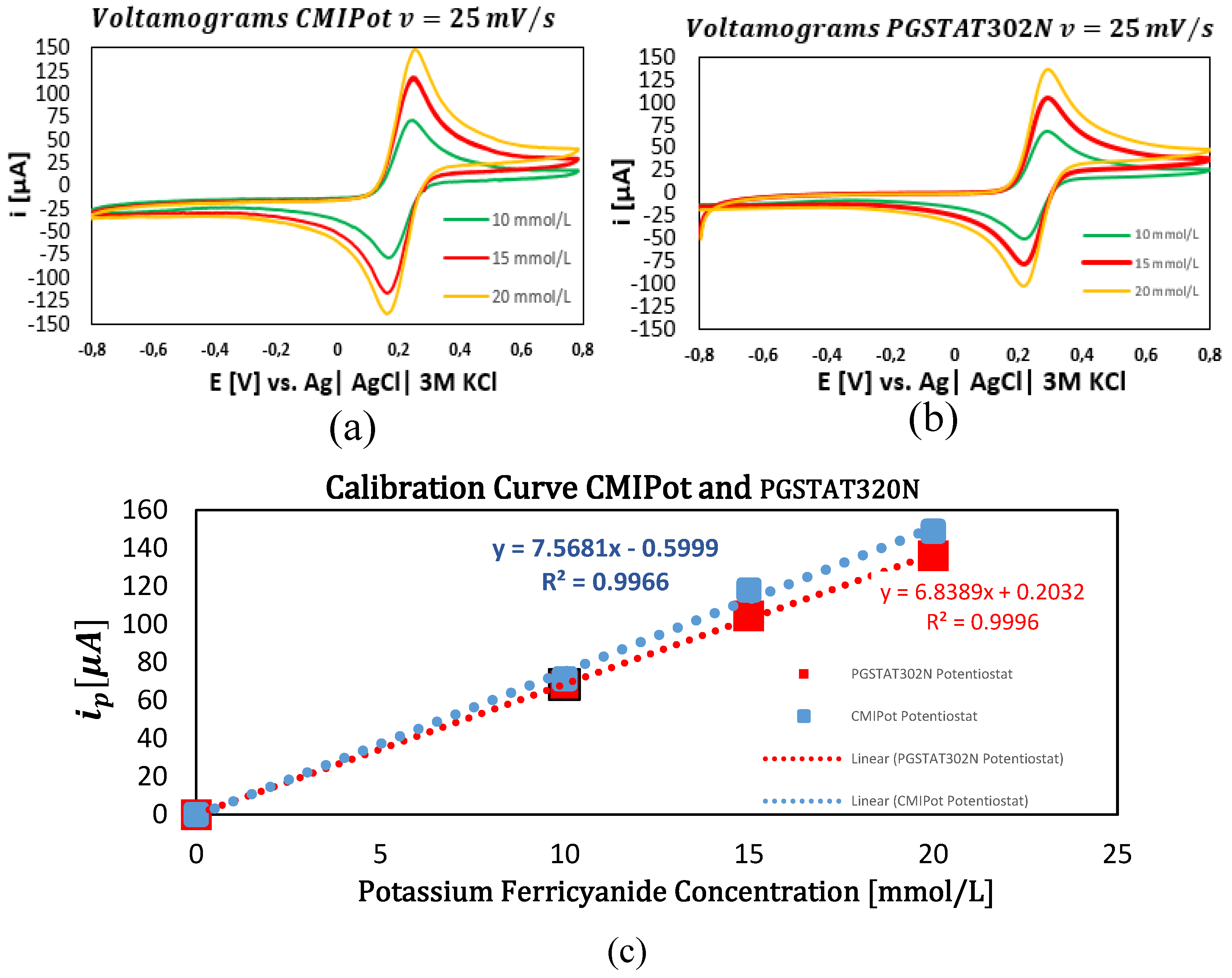

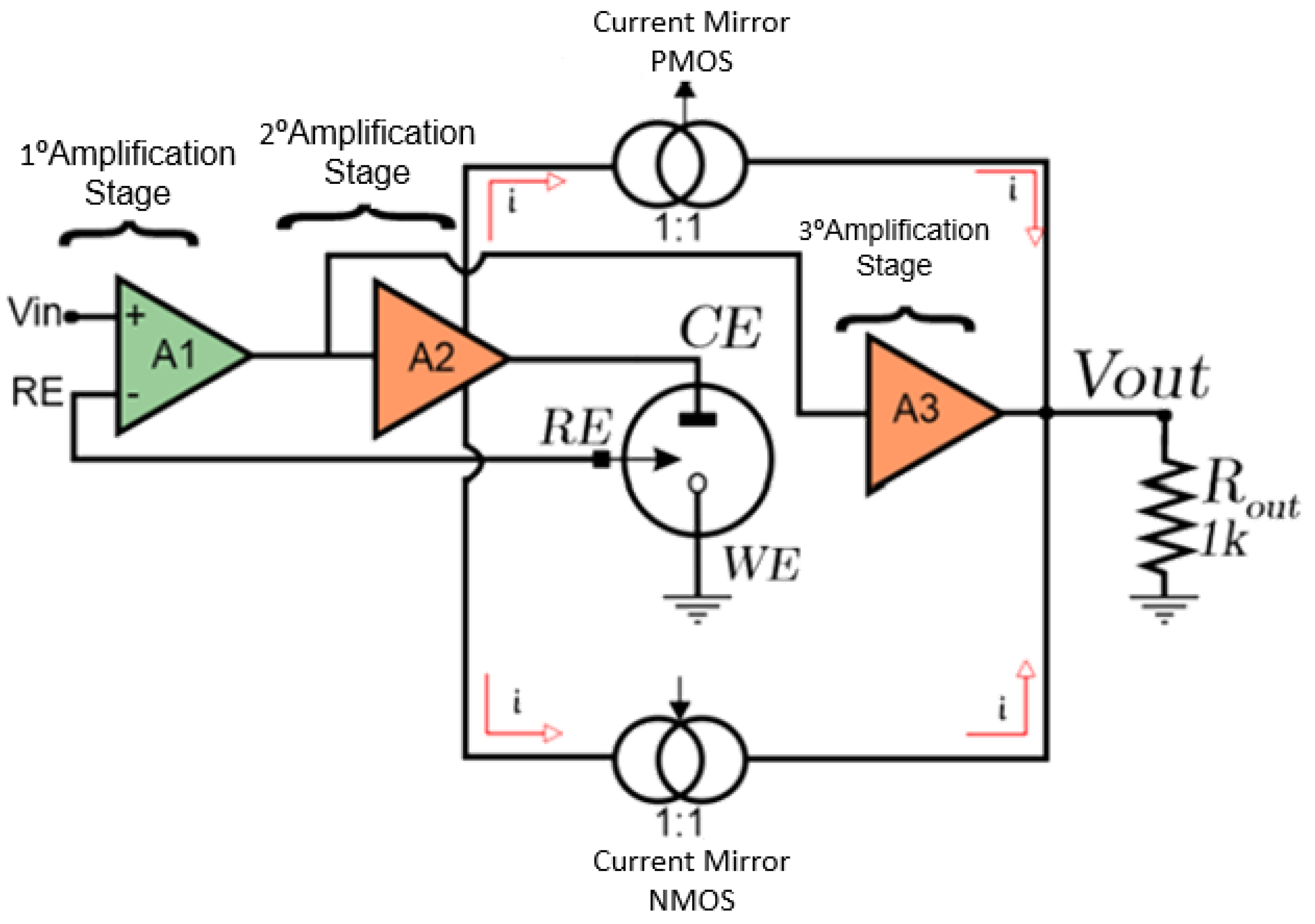

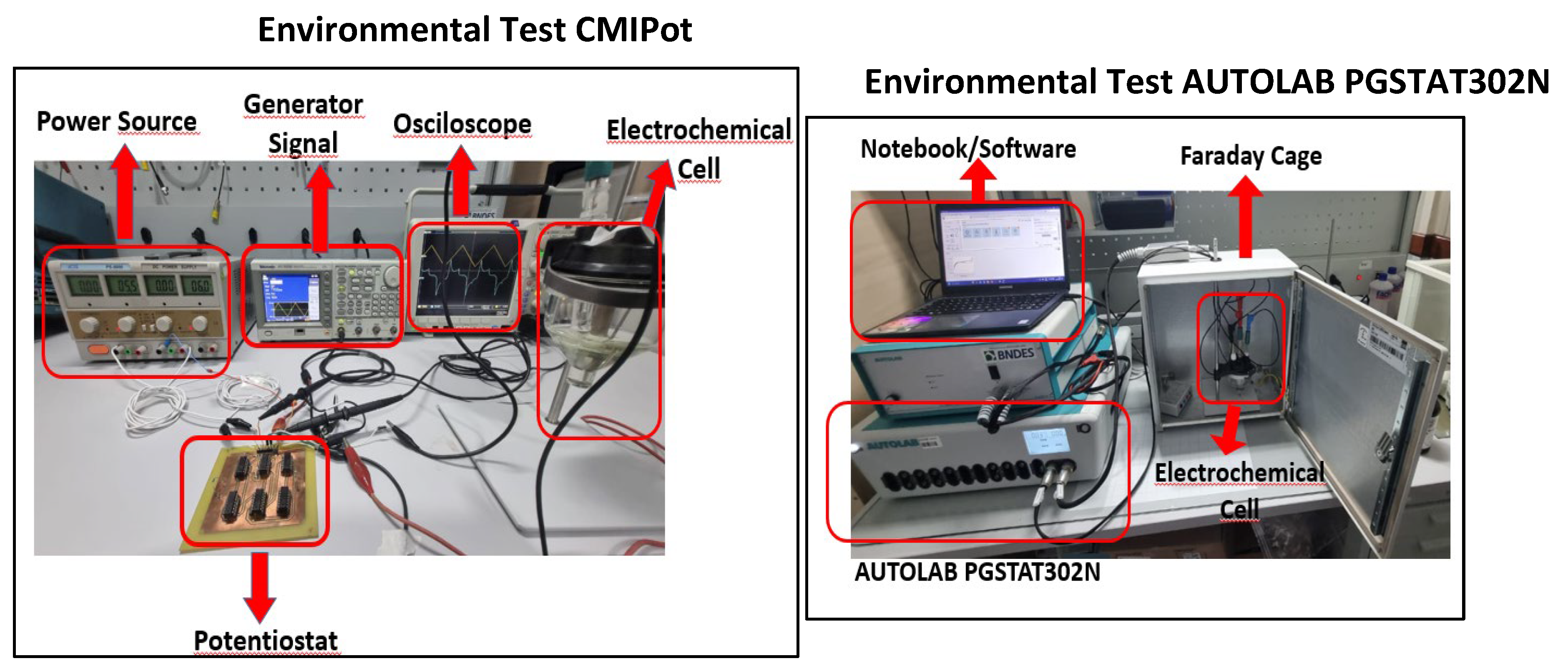

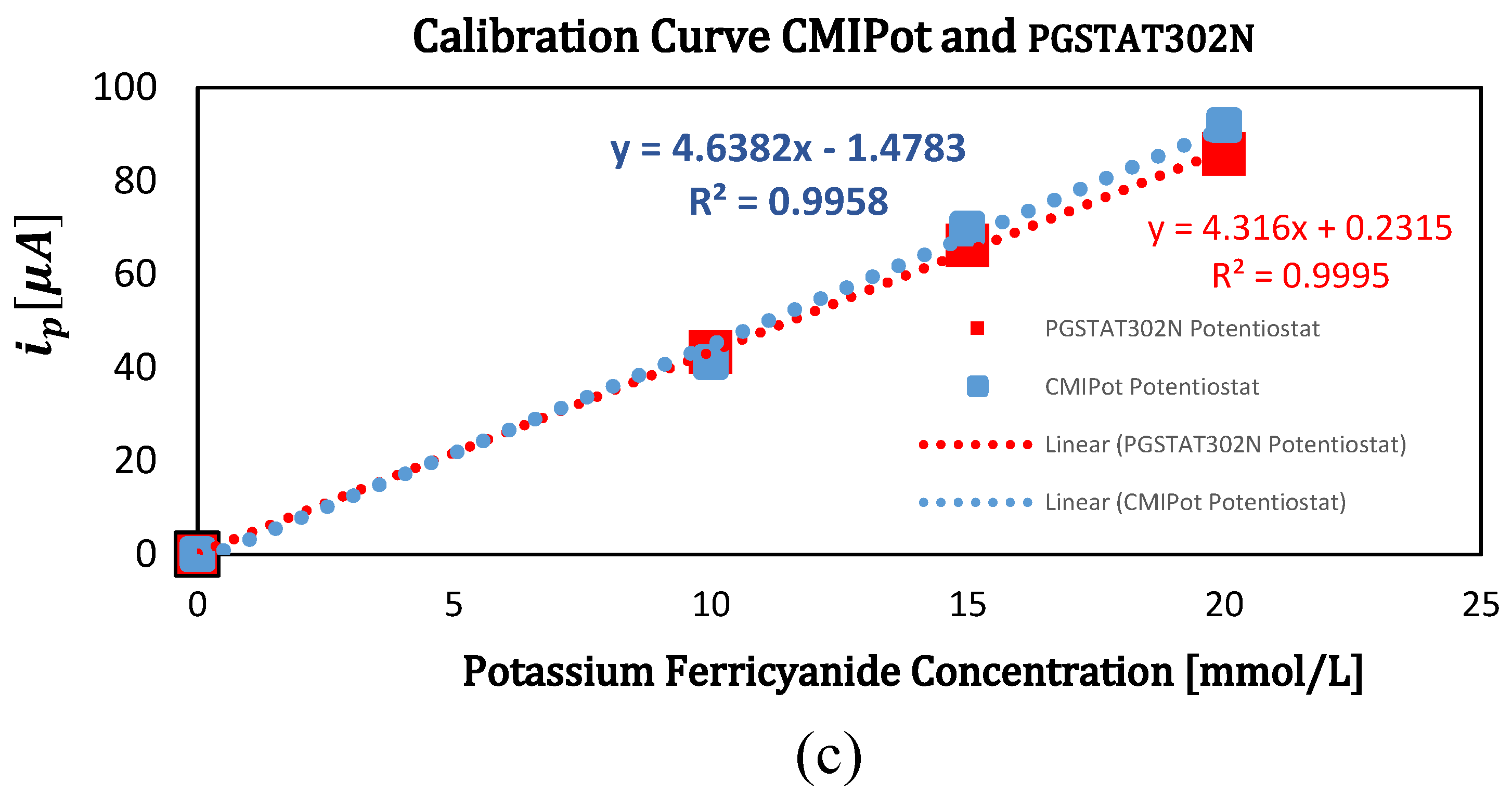

This work presents a novel compact CMOS potentiostat designed circuit for electrochemical cell. The proposed topology functions as a circuit interface, controlling the polarization of voltage signals at the sensor electrodes and facilitating current measurement during the oxidation-reduction process of a analyzed solution. The potentiostat, designed for CMOS technology, comprises a two-stage amplifier, two current mirror blocks coupled to this amplifier, and a CMOS push-pull output stage. It employs the electrochemical method of cyclic voltammetry, operating within voltage range of ±0.8 V and scan rates of 10mV/s, 25mV/s, 100mV/s and 250 mV/s. The circuit is capable of reading currents ranging from 10 µA to 500 µA. Experimental results were obtained using a potassium ferrocyanide (K3(FeCN)6) redox solution with concentrations of 10, 15 and 20 mmol/L, and their corresponding voltammograms were evaluated. The experimental results from a discrete circuit demonstrate that the proposed potentiostat topology produces outcomes consistent with those of classical topologies presented in the literature and industrial equipment.
Engineering, Electrical and Electronic Engineering
